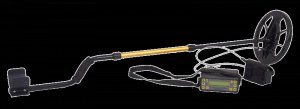

Deeptech Ground Pioneer - 4500 Pulse Induction Detector
The Digital Ground Pioneer 4500 is totally new high technology pulse induction detector - combination of Metal detector and Magnetometer Sensor System, one of the best professional pulse induction metal detectors in existence. RS 232 port is provided for connection to computer and GPS system for localizing. Ground Pioneer 4500 is designed for detecting deeply buried or lost metal objects, metal pipes, underground communication equipment, treasures and similar objects. The unit works by the principle of electromagnetic induction at very low frequency, which allows penetration deeply in the ground. The depth, combined with iron object discrimination, automatic tuning and the choice of different regimes for searching, make the unit hardly replaceable in a lot of situations. The GP4500 can easily detect larger objects buried up to 8m deep.
TECHNICAL CHARACTERISTICS – Ground Pioneer 4500:
Working voltage: 12V;
RS 232 port is provided for connection to computer and GPS system for localization;
Baud Rate: 19200;
Data bits: 8;
Stop bits: 1;
Com port setup: 19200 8n1;
ADC raw data format;
Continuous power consumption: min 240mA (with no sound and light);
Pick power: >250 W;
Maximum power consumption: 280 mA;
Working Frequency: 100 Hz;
Sound Range: 0,1Hz - 6,5kHz;
Battery: Rechargeable 1,3 (2,3-optional) Ah, hermetic, acid Battery;
Charger input (adapter): 100/240V 50/60 Hz/AC;
Charger output: 14.6 VDC 500mA;
Battery Charging Time (empty): Max.10 hours;
Full Microprocessor Control;
Automatic Ground Balance;
Auto Tracking;
Manual Tuning;
Delay control;
Graphic Mode Analyzing Target;
Display: 20/2 LCD module with back light with three mode;
All metal/No-Motion mode;
Audio and Visual Discrimination Mode (by built-in Magnetometer-Sensor System);
Depth Control for Maximized Detection Depth;
Reset controls for easy operation;
Headphone input: 1/4” Mono Jack;
External Power Supply;
Protection against reverse polarity;
Optimal Temperature Range:-10 to 50 Degrees C
